Good morning Chris,

I am working with Rolando and Matt P on the Datacon that has the ETEL we received from you.

Here is what I am seeing this morning.

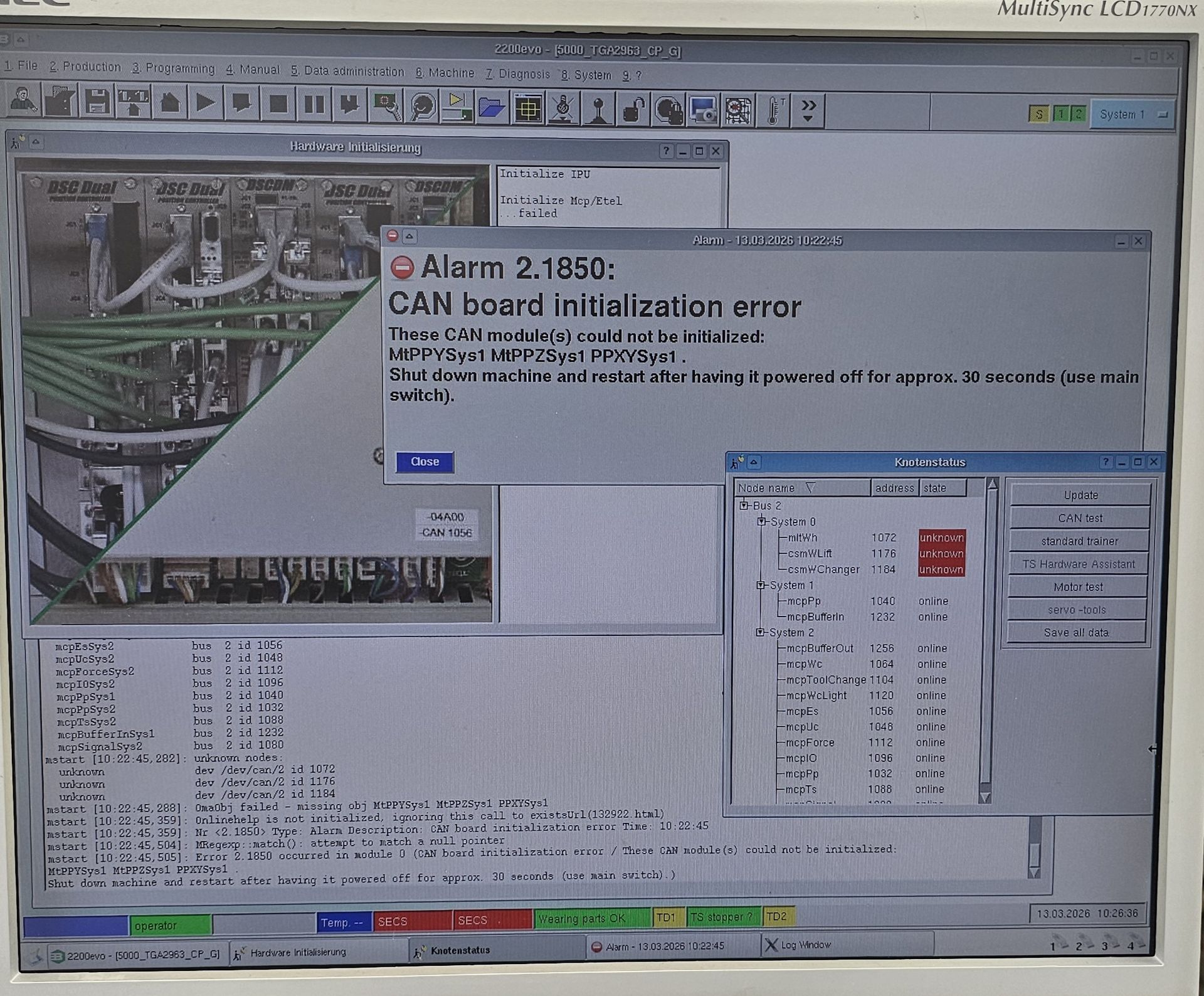

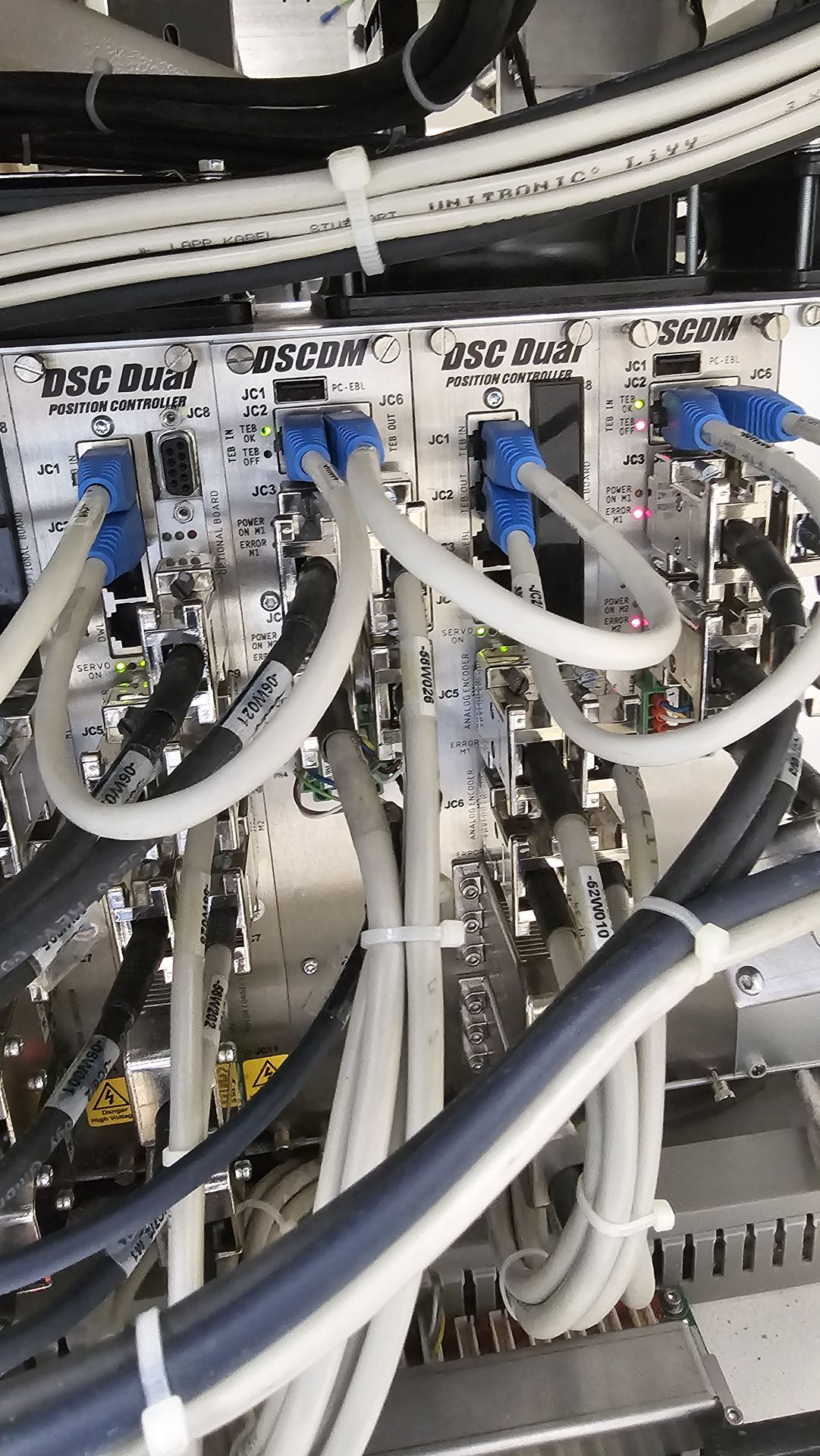

The ETEL we replaced is in the 3^rd slot, for the original issue was with the Ejector System motor. During ETEL initialization, the TEB OFF lights are blinking on the ETEL in the 5^th slot ( I have attached a snapshot). The alarm I am getting is Alarm 2.1850. I have also included a snapshot of that.

My knowledge of this is pretty limited, but it looks like it could be an issue with the TEB ID. The dip switches on that ETEL were never changed, to my knowledge, but I pulled that ETEL out and checked them. They are set the same as the ETEL we replaced in slot 3. I venture to guess that we will need specific software to communicate directly with the ETELs and check the firmware and ID, which we don't have.

I put the original, suspected bad ETEL back in slot 3, and get a different set of CAN boards failing to initialize, but the TEB lights are all green on all ETELs.

During the course of all this, I have powered down and back up again, as the alarm recommends.

Eric Bloomfield

AMMA Equipment Tech – D1

972-979-0544
